PRECISION RESISTANCE MEASUREMENT

Precision resistance measurement equipment for a range of applications. Specialist units measure down to fractions of a micro-ohm with high accuracy

MO-5893-10A Portable Digital Micro-ohmmeter
READ MORE+

MO-5893-10A Portable Digital Micro-ohmmeter

  • Up to 10 A test current
  • Resolution: 1 μΩ
  • Resistance reading: up to 2000 Ω
  • U/I (4-wires) measurement
  • Alphanumerical display
  • Direct reading (up to 4½ digits)
  • USB Serial data output
  • Rechargeable battery
  • Remote control through an Android™ app
MO-5893-10AT Portable Digital Micro-ohmmeter
READ MORE+

MO-5893-10AT Portable Digital Micro-ohmmeter

  • Up to 10 A test current
  • Temperature compensation
  • Resolution: 0.1 μΩ
  • Resistance reading: up to 2000 Ω
  • U/I (4-wires) measurement
  • Alphanumerical display
  • Direct reading (up to 4½ digits)
  • USB Serial data output
  • Rechargeable battery
  • Remote control through an Android™ app
MO-5898-100A Portable Digital Micro-ohmmeter
READ MORE+

MO-5898-100A Portable Digital Micro-ohmmeter

  • Up to 100 A test current
  • Resolution down to: 0.1 µΩ
  • Resistance reading up to: 200 Ω
  • Powered by internal battery (up to 10 A) or mains supply
  • Direct reading (up to 4½ digits)
  • Overheating protection
MO-5899-100A Portable Digital Micro-ohmmeter
READ MORE+

MO-5899-100A Portable Digital Micro-ohmmeter

  • Up to 100 A test current
  • Resolution: 0.1 µΩ
  • Resistance reading: up to 300 mΩ
  • Alphanumerical display
  • Direct reading (up to 4½ digits)
  • Overheating protection
  • Internal memory for up to 50 registers with 80 readings each
  • Built-in printer
MO-5889-200A Portable Digital Micro-ohmmeter
READ MORE+

MO-5889-200A Portable Digital Micro-ohmmeter

  • Up to 200 A test current
  • Resolution: 0.1 μΩ
  • Resistance reading: up to 20 mΩ
  • Internal memory for up to 200 readings
  • Direct reading (up to 4½ digits)
  • Overheating protection
  • USB interface
  • Built-in printer
MO-5898-200A Portable Digital Micro-ohmmeter
READ MORE+

MO-5898-200A Portable Digital Micro-ohmmeter

  • Up to 200 A test current
  • Resolution down to: 0.1 µΩ
  • Resistance reading up to: 200 Ω
  • Powered by internal battery (up to 10 A) or mains supply
  • Direct reading (up to 4½ digits)
  • Overheating protection
MO-5890-200A Portable Digital Micro-ohmmeter
READ MORE+

MO-5890-200A Portable Digital Micro-ohmmeter

  • Performs 30 consecutives 1-minute measurements with 1 minute interval between them
  • Test current from 5 A up to 200 A
  • Direct reading (up to 4½ digits)
  • Resolution: 0.1 μΩ
  • Resistance reading: up to 1 Ω
  • Overheating protection
  • Internal memory for up to 50 registers with 80 readings each
High Current (200A) Portable Micro-Ohmmeter 5898
READ MORE+

High Current (200A) Portable Micro-Ohmmeter 5898

An accurate mains/battery powered portable 200A Micro-Ohmmeter. Using the 4 terminal measurement technique, the Tinsley 5898 gives basic accuracy of 0.2% and an overall resistance range of 0.1 µOhm to 6 Ohm.
Standard Reference Resistors
READ MORE+

Standard Reference Resistors

The Resistors are made from a specially selected alloy having a low temperature coefficient mounted in a strain free manner on formers made from material or low dielectric loss but of high mechanical stability.
Resistance Test Clamp
READ MORE+

Resistance Test Clamp

The Type 3218C is designed for the resistance measurement of wire, cable, or strip metal using a low resistance measuring device (milli or micro-ohmeter such as the Tinsley 5894), which use a four wire kelvin type measuring system.
Dual Channel Transformer Micro-Ohmmeter 5896C
READ MORE+

Dual Channel Transformer Micro-Ohmmeter 5896C

The Tinsley 5896C is specifically designed to measure the resistance of highly inductive loads such as transformers, motors and generators.
Wide Range Precision Ohmmeter 5894
READ MORE+

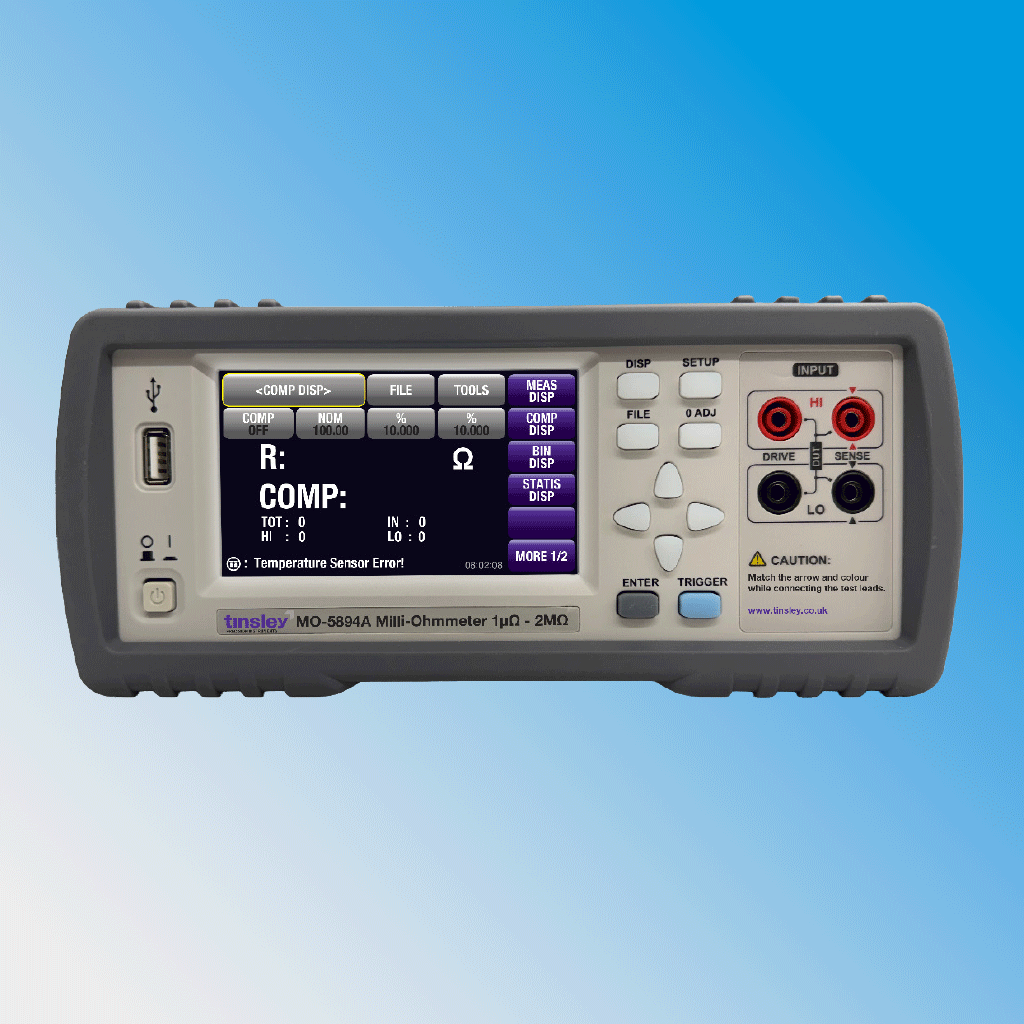

Wide Range Precision Ohmmeter 5894

With a wide measurement range the new Tinsley 5894 is suitable for applications that require either a milli-ohmmeter or micro-ohmmeter.
Digital Micro-Ohmmeter 5893
READ MORE+

Digital Micro-Ohmmeter 5893

The 5893 provides up to 0.1m Ohm resolution 07 resistance measurements in 6 selectable ranges from 600 µOhm to 60 Ohm.
Transformer Micro-Ohmmeter 5895
READ MORE+

Transformer Micro-Ohmmeter 5895

This Micro-Ohmmeter, type 5895, has been specifically designed for the fast measurement of the resistance of large transformers.
