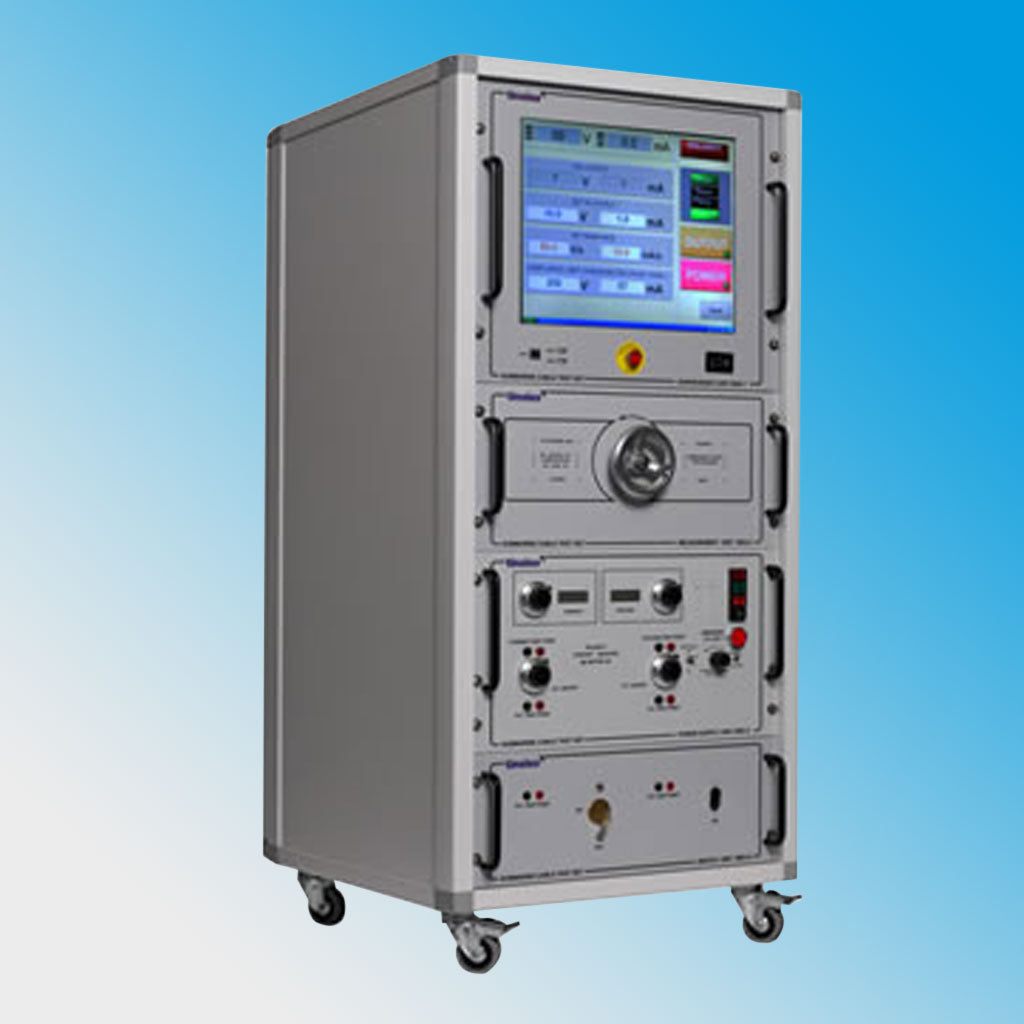

Long Haul Submarine Cable Test Set Model 5903

The Tinsley 5903 Long Haul Submarine Cable Test Set brings the latest technology to the tried and tested DC methods of cable fault location for both repeated and un-repeated systems.

The more common test procedures which are associated with the location of types of cable fault such as "open circuits" and "shunt faults" are pre programmed into the instrument. This allows the procedure to be carried out automatically therefore eliminating operator errors and reducing the uncertainty of the predicted fault position. The instrument may be set for a wide range of voltage and current limits making it suitable for use with most submarine communication cable systems. Safety being an important feature, the instrument gives a continuous indication of the state of charge of the cable under test and will automatically disallow current, voltage or polarity changes to be made until any voltage on the cable has fallen to a level which is safe for both the cable and the instrument. To ensure complete operator safety a number of interlocks operate disconnecting all power before access is allowed to the high voltage areas. The setting up of the instrument is via the menu driven touch screen display. This display is also used to indicate the progress of a test procedure during its implementation. The Ethernet interface is designed for high speed full duplex communication between modules. All functions may also be controlled via a computer and data obtained may be stored for future analysis. This interface may also be used to enable two 5903's to be connected to communicate with each other when carrying out double ended tests such as "no loss of current".

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Ohmmeter – Conductor Resistance Measurement

Resistance Range: 1Ω to 9.9Ω

Display Resolution: 0.0001Ω

Accuracy: ±2%

Resistance Range: 10Ω to 99.9Ω

Display Resolution: 0.001Ω

Accuracy: ±1%

Resistance Range: 100Ω to 999.9Ω

Display Resolution: 0.01Ω

Accuracy: ±0.5%

Resistance Range: 5000.01Ω to 10000Ω

Display Resolution: 0.1Ω

Accuracy: ±0.05%

Current Control

Polarity: Selectable positive "+" or negative "-"

Level: May be set from 100µA to 1A with a resolution of 100µA

Compliance: Selectable at any value between 10V to 6KV with a resolution of 0.1V

Preset limits: 50V, 100V, 500V, 1000V, 5000V

Measurement Range: 20mA

Display Resolution: 0.001mA

Accuracy: ±0.025%

Measurement Range: 200mA

Display Resolution: 0.01mA

Accuracy: ±0.025%

Measurement Range: 2A

Display Resolution: 0.1mA

Accuracy: ±0.025%

Voltage Control Mode

Level may be set from 10V to 6000V with a resolution of 0.1V

Measurement Range: 10V to 94.999V

Display Resolution: 0.001V

Accuracy: ±0.02%

Measurement Range: 95V to 949.99V

Display Resolution: 0.01V

Accuracy: ±0.02%

Measurement Range: 950V to 10KV

Display Resolution: 0.1V

Accuracy: ±0.02%

Specifications include Capacitance Meter (CAP or IC) and MegOhmmeter – insulation resistance measurement.

Direct reading capacitance measurements between 1µF and 1F, incorporating automatic compensation for leakage and series resistance evenly distributed along cable length.

Range: 1µF

Resolution: 0.001µF

Accuracy: ±5%

Measurement Cycle: 5mA / 1 s / 5000V

Range: 10µF

Resolution: 0.01µF

Accuracy: ±0.6%

Measurement Cycle: 5mA / 10 s / 2300V

Range: 100µF

Resolution: 0.1µF

Accuracy: ±0.3%

Measurement Cycle: 10mA / 10 s / 2500V

Range: 1mF

Resolution: 1µF

Accuracy: ±0.3%

Measurement Cycle: 20mA / 100 s / 2500V

Range: 10mF

Resolution: 10µF

Accuracy: ±0.3%

Measurement Cycle: 50mA / 500 s / 2500V

Range: 100mF

Resolution: 100µF

Accuracy: ±0.3%

Measurement Cycle: 100mA / 1000 s / 2500V

Range: 1F

Resolution: 100µF

Accuracy: ±0.3%

Measurement Cycle: 100mA / 5000 s / 5000V

Specifications include Capacitance Meter (CAP or IC) and MegOhmmeter – insulation resistance measurement.

Ohmmeter – Conductor Resistance Measurement

Resistance Range: 1Ω to 9.9Ω

Display Resolution: 0.0001Ω

Accuracy: ±2%

Resistance Range: 10Ω to 99.9Ω

Display Resolution: 0.001Ω

Accuracy: ±1%

Resistance Range: 100Ω to 999.9Ω

Display Resolution: 0.01Ω

Accuracy: ±0.5%

Resistance Range: 5000.01Ω to 10000Ω

Display Resolution: 0.1Ω

Accuracy: ±0.05%

Current Control:

Polarity: Selectable positive "+" or negative "-"

Level: May be set from 100µA to 1A with a resolution of 100µA

Compliance: Selectable at any value between 10V to 6KV with a resolution of 0.1V

Preset limits: 50V, 100V, 500V, 1000V, 5000V

Measurement Range: 20mA

Display Resolution: 0.001mA

Accuracy: ±0.025%

Measurement Range: 200mA

Display Resolution: 0.01mA

Accuracy: ±0.025%

Measurement Range: 2A

Display Resolution: 0.1mA

Accuracy: ±0.025%

Voltage Control Mode:

Level may be set from 10V to 6000V with a resolution of 0.1V

Measurement Range: 10V to 94.999V

Display Resolution: 0.001V

Accuracy: ±0.02%

Measurement Range: 95V to 949.99V

Display Resolution: 0.01V

Accuracy: ±0.02%

Measurement Range: 950V to 10KV

Display Resolution: 0.1V

Accuracy: ±0.02%

Polarity: selectable positive "+" or negative "-"

Range / Applicable Voltage / Resolution / Accuracy:

105Ω – 100V to 1000V – 100Ω – ±0.1%

106Ω – 250V to 2500V – 1KΩ – ±1%

107Ω – 300V to 2500V – 10KΩ – ±1%

108Ω – 500V to 2500V – 100KΩ – ±2%

109Ω – 1000V to 2500V – 1MΩ – ±2%

*Accuracies indicated are based on measurement of Standard Resistors and Capacitors.

For more information about this product, contact Tinsley.

Note: Due to the technical nature of Submarine Cable Testing Equipment and the use and support requirements across international boundaries, the equipment can only be purchased direct from the manufacturer – Tinsley Precision Instruments in the UK or through certified international agents listed on their website.

Specifications:

Capacitance Meter (CAP or IC)

MegOhmmeter – insulation resistance measurement

Ohmmeter – Conductor Resistance Measurement:

Resistance Range: 1Ω to 9.9Ω – Display Resolution: 0.0001Ω – Accuracy: ±2%

Resistance Range: 10Ω to 99.9Ω – Display Resolution: 0.001Ω – Accuracy: ±1%

Resistance Range: 100Ω to 999.9Ω – Display Resolution: 0.01Ω – Accuracy: ±0.5%

Resistance Range: 5000.01Ω to 10000Ω – Display Resolution: 0.1Ω – Accuracy: ±0.05%

Current Control:

Polarity: Selectable positive "+" or negative "-"

Level: May be set from 100µA to 1A with a resolution of 100µA

Compliance: Selectable at any value between 10V to 6KV with a resolution of 0.1V

Preset limits: 50V, 100V, 500V, 1000V, and 5000V

Measurement Range: 20mA – Display Resolution: 0.001mA – Accuracy: ±0.025%

Measurement Range: 200mA – Display Resolution: 0.01mA – Accuracy: ±0.025%

Measurement Range: 2A – Display Resolution: 0.1mA – Accuracy: ±0.025%

Voltage Control Mode:

Level may be set from 10V to 6000V with a resolution of 0.1V

Measurement Range: 10V to 94.999V – Display Resolution: 0.001V – Accuracy: ±0.02%

Measurement Range: 95V to 949.99V – Display Resolution: 0.01V – Accuracy: ±0.02%

Measurement Range: 950V to 10KV – Display Resolution: 0.1V – Accuracy: ±0.02%
