Transformer Test Equipment

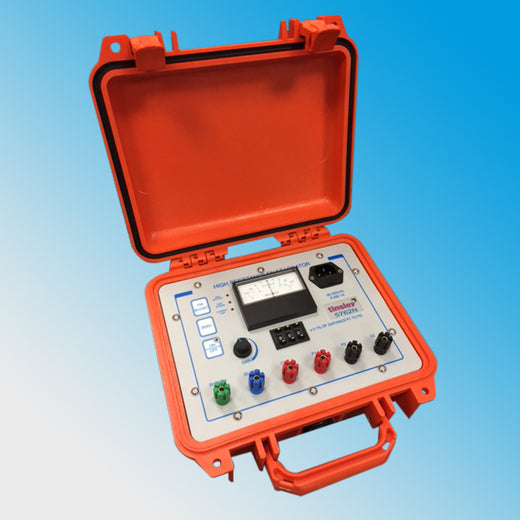

The 5762N is a portable cable fault locator for determining the position of a single shorting fault between two conductors, or between one conductor and the cable sheath or ground.

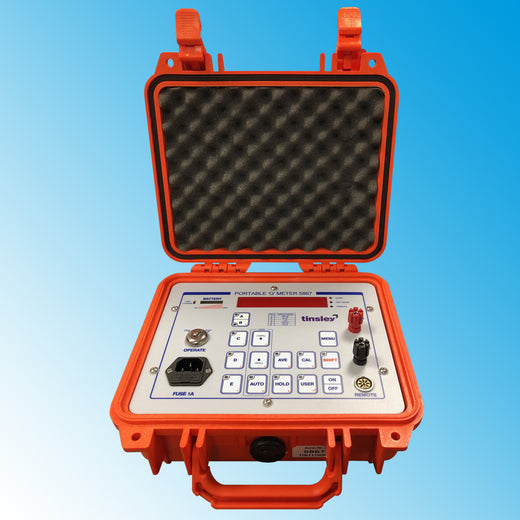

The Tinsley type 5867 uses a wound component's "Q" to give an indication of the quality of the component. It is used to compare the electrical characteristics between windings, either between a known good example and a unit under test or between phases of a three phase device.

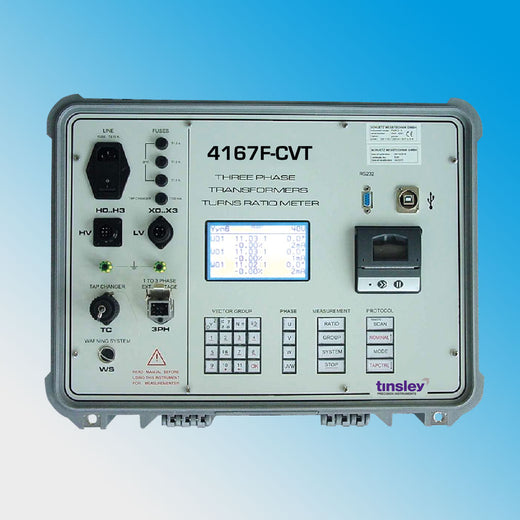

The great advantage of the 4167F-(CVT) compared to many of the other instruments on the market is its simple set-up.

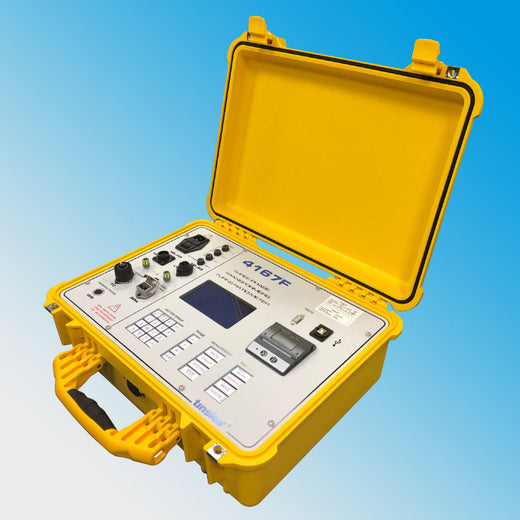

The advantage of the 4167F is its simplicity to set-up. Setting up the instrument is a simple case of typing in the vector group using the instrument front panel keypad and connecting to the offline transformer.
