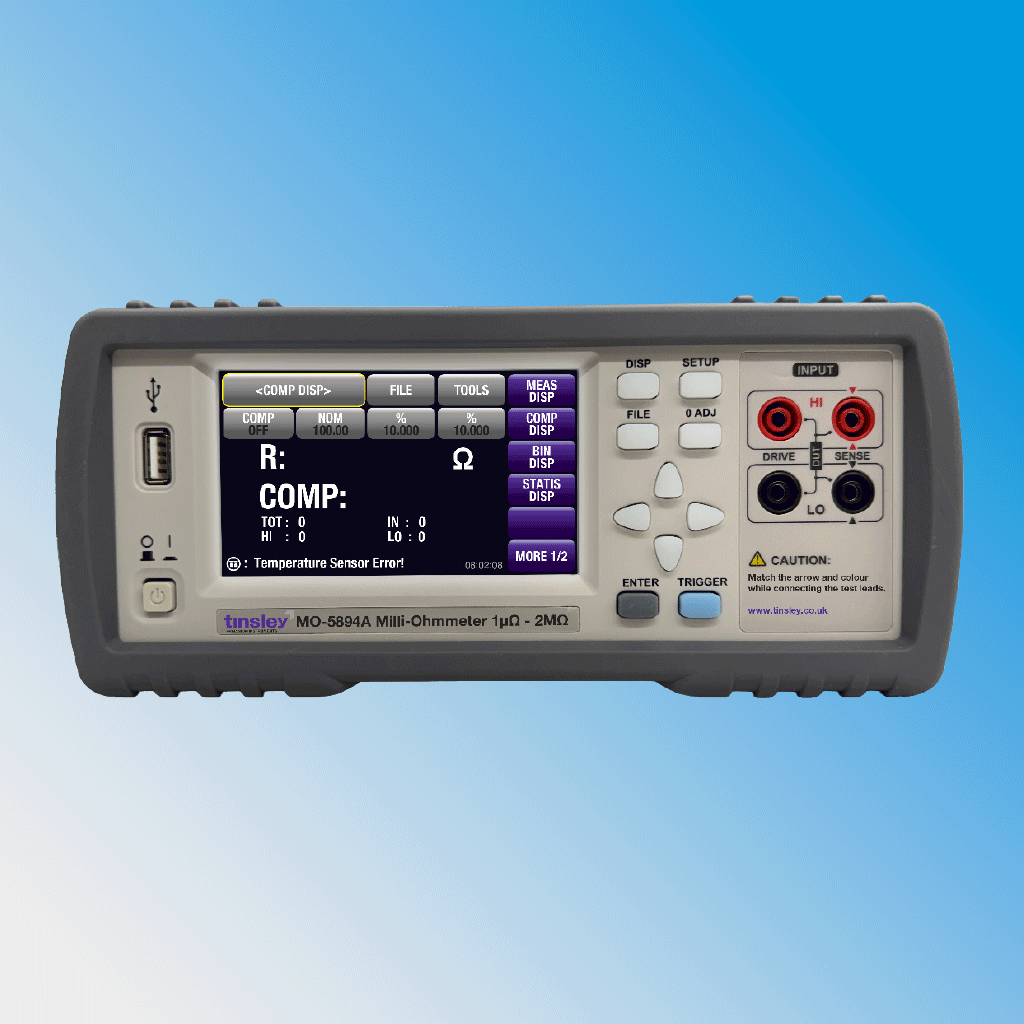

Model MO-5894A milli-ohmmeter 1uΩ - 2MΩ

MO-5894A is a compact DC resistance milli-ohmmeter with a 4.3″ capacitive touch TFT LCD and 5½-digit display. It offers a measuring range from 1 µΩ to 2 MΩ, a maximum accuracy of 0.05 % and integrated temperature compensation and conversion for reliable results regardless of ambient conditions.

Applications

  • Contact and contact resistance measurement on relays, connectors, conductor tracks
  • Low-Ω measurement on motor and transformer windings
  • PCB and solder joint testing in electronics production
  • Temperature-compensated resistance measurement of thermistors and sensors
  • Inline test systems with handler bin sorting and automatic data recording

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • Maximum resistance accuracy 0.05 % +2d
  • Temperature accuracy 0.5 °C
  • Minimum resolution 1 µΩ
  • Low-resistance test mode to protect the test specimens
  • Versatile measurement functions): R, R-T, T, LPR, LPR-T
  • Offset voltage compensation (OVC) & zero adjustment (0 ADJ)
  • Statistics & 3-bin comparator (OVER, PASS, BEEP)
  • Automatic software updates via USB host
DATASHEET MO-5894A
