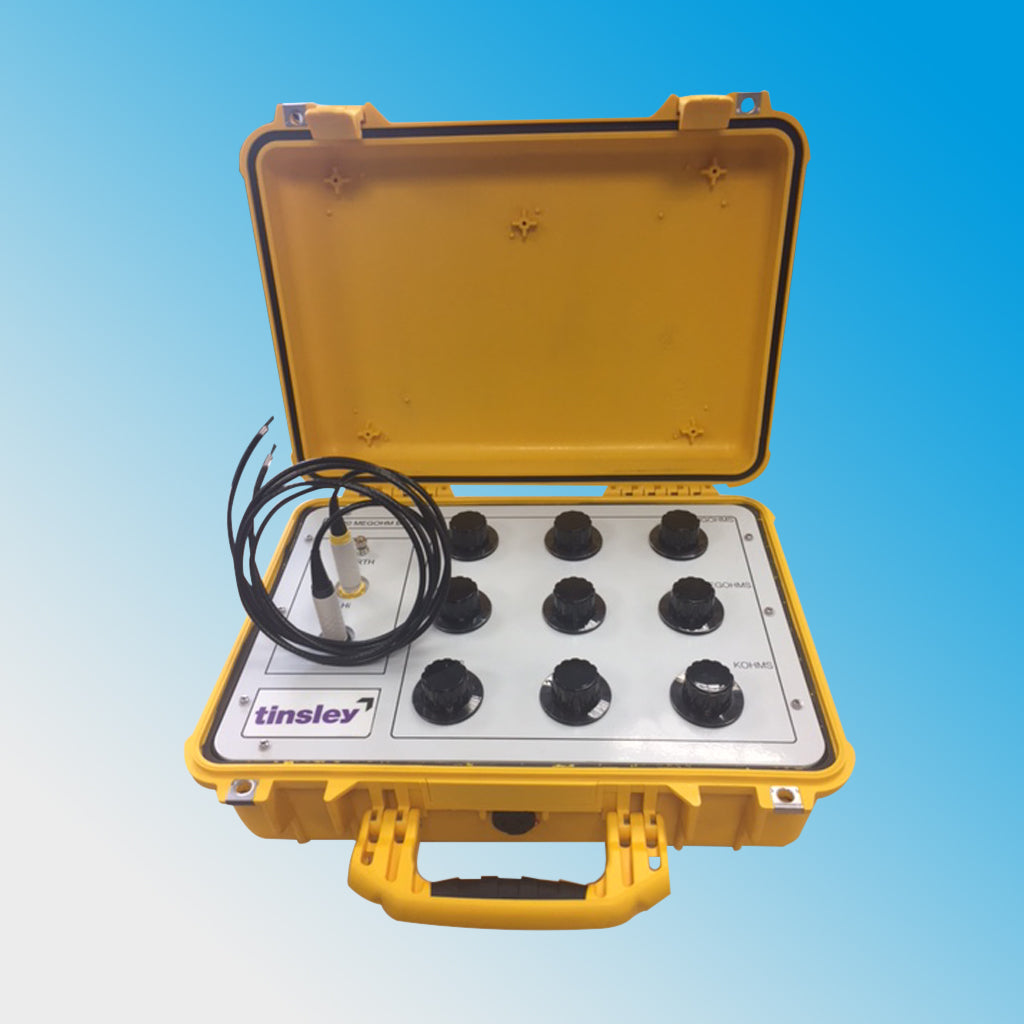

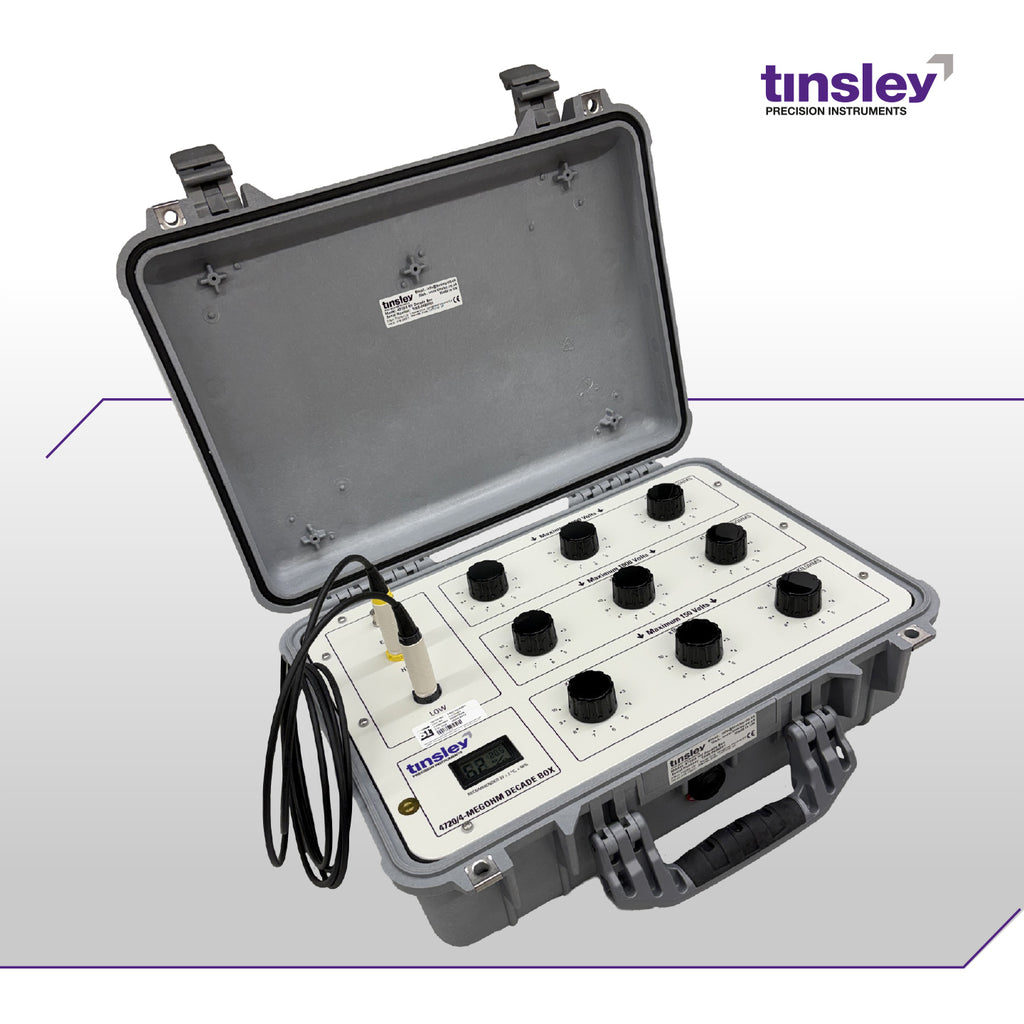

Portable 9 Decade High Resistance Box Model 4720 Series

Designed for the checking and calibration of insulation testers at voltages of up to 5000V DC, the Tinsley Model 4720 high resistance decade boxes provides up to 9 decades of resolution.

The total range covered is from 1 kΩ to 1,111,111,110kΩ using specially selected resistors and high quality switches mounted on an easy to read panel.

These decade resistance boxes are housed in strong polymer portable cases with lids and carrying handles to provide an ideal solution to on-site and laboratory calibration of high resistance insulation testers.

The instruments can be supplied complete with a calibration certificates provided by our own in-house calibration laboratory.

Accessories

A4720-110: A pair of open ended test leads fitted with special high insulation plugs for connection to the decade box are provided.


Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Decade 1: Value = 10 × 1 kΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 10, Temp. Coeff. = ±15 ppm/°C. Available in: 4720, 4720/2, 4720/4.

Decade 2: Value = 10 × 10 kΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 50, Temp. Coeff. = ±15 ppm/°C. Available in: 4720, 4720/2, 4720/4.

Decade 3: Value = 10 × 100 kΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 150, Temp. Coeff. = ±15 ppm/°C. Available in: 4720, 4720/2, 4720/4.

Decade 4: Value = 10 × 1 MΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 300, Temp. Coeff. = ±25 ppm/°C. Available in: 4720, 4720/2, 4720/3, 4720/4.

Decade 5: Value = 10 × 10 MΩ, Accuracy = ±0.2%, Max Power = 2 W, Max V/Step = 500, Temp. Coeff. = ±50 ppm/°C. Available in: 4720, 4720/2, 4720/3, 4720/4.

Decade 6: Value = 10 × 100 MΩ, Accuracy = ±1.0%, Max Power = 7.5 W, Max V/Step = 1000, Temp. Coeff. = ±100 ppm/°C. Available in: 4720, 4720/2, 4720/3, 4720/4.

Decade 7: Value = 10 × 1 GΩ, Accuracy = ±1.0%, Max Power = 7.5 W, Max V/Step = 5000, Temp. Coeff. = ±100 ppm/°C. Available in: 4720, 4720/1, 4720/3, 4720/4.

Decade 8: Value = 10 × 10 GΩ, Accuracy = ±2.0%, Max Power = 7.5 W, Max V/Step = 5000, Temp. Coeff. = ±100 ppm/°C. Available in: 4720, 4720/1, 4720/3, 4720/4.

Decade 9: Value = 5 × 100 GΩ, Accuracy = ±5.0%, Max Power = 7.5 W, Max V/Step = 5000, Temp. Coeff. = ±2000 ppm/°C. Available in: 4720, 4720/1, 4720/3, 4720/4 (extended to 10 × 100 GΩ for 4720/4 only).
