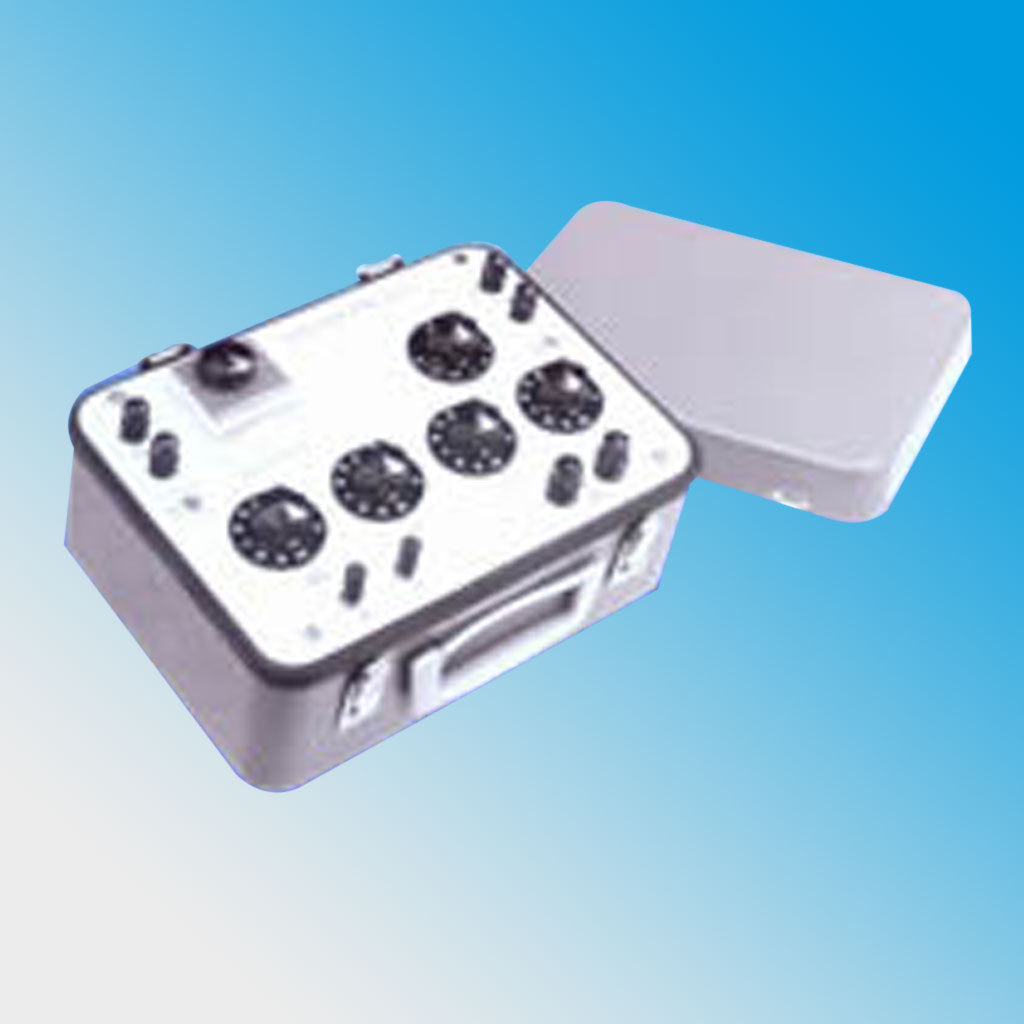

Portable Wheatstone Bridge Model QJ23

The Tinsley QJ23 is a stable and accurate Wheatstone bridge for resistance measurements.

The 4 Rheostat decades may also be used as an adjustable 4-dial decade resistance box.

Self-contained with built-in galvanometer and batteries, the QJ23 is housed in a lightweight, durable carrying case.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Specifications

Range: 1 Ω to 9.999MΩ
Accuracy: ± 0.1% at 10K Ω range / ± 0.2% at 10MΩ range
Galvanometer: Built in
Galvanometer Sensitivity: better than1 μA/mm
Power: Built in Dry cells 3x 1.5V, or external
Dimensions: 240 x 180 x 140 mm
Weight: Approximately <2kg
