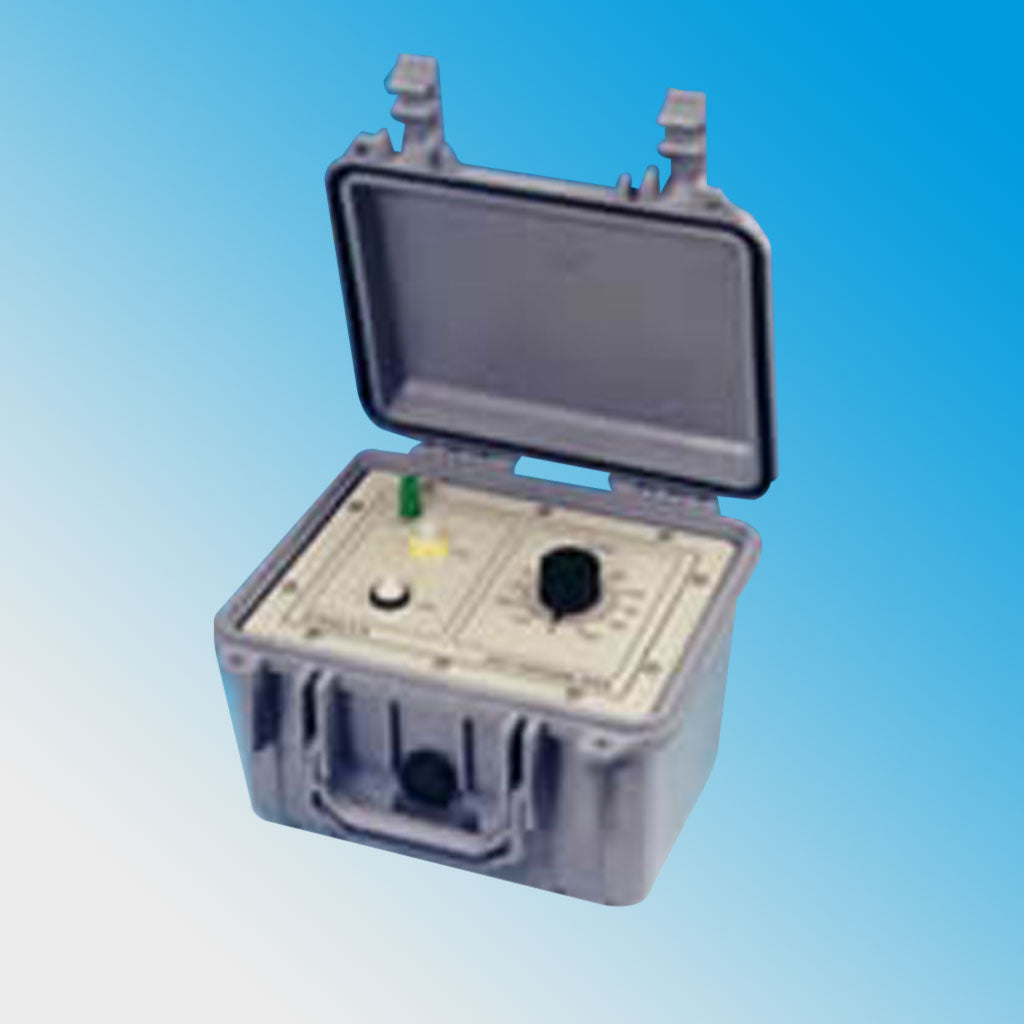

Single, High Resistance Decade Box Model 4721

The Tinsley Model 4721 decade box is designed for the checking and calibration of insulation testers at voltages of up to 5000V DC.

The total range covered is from 1 kΩ to 1TeraΩ using specially selected resistors and a high quality switch mounted on an easy to read panel.

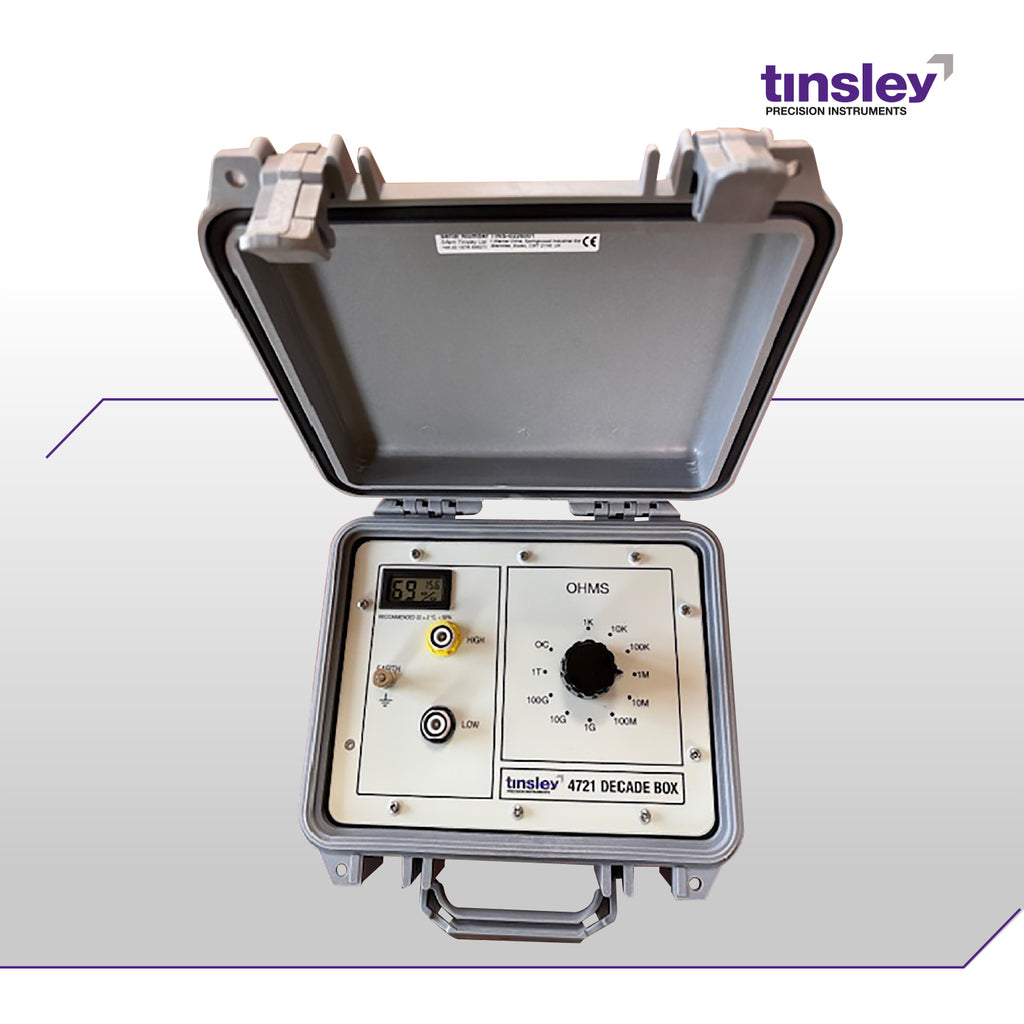

This resistance box is housed in a strong aluminium case with lid and carrying handle to provide an ideal solution to on-site and laboratory calibration of high resistance insulation testers.

The instrument can be supplied complete with a calibration certificate provided by our own in-house calibration laboratory.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Model 4721 – Specification

Decade 1: Value = 1 kΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 10, Temp. Coeff. = ±15 ppm/°C.

Decade 2: Value = 10 kΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 50, Temp. Coeff. = ±15 ppm/°C.

Decade 3: Value = 100 kΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 150, Temp. Coeff. = ±15 ppm/°C.

Decade 4: Value = 1 MΩ, Accuracy = ±0.15%, Max Power = 2 W, Max V/Step = 300, Temp. Coeff. = ±25 ppm/°C.

Decade 5: Value = 10 MΩ, Accuracy = ±0.5%, Max Power = 2 W, Max V/Step = 500, Temp. Coeff. = ±50 ppm/°C.

Decade 6: Value = 100 MΩ, Accuracy = ±1.5%, Max Power = 7.5 W, Max V/Step = 1000, Temp. Coeff. = ±100 ppm/°C.

Decade 7: Value = 1 GΩ, Accuracy = ±1.5%, Max Power = 7.5 W, Max V/Step = 5000, Temp. Coeff. = ±100 ppm/°C.

Decade 8: Value = 10 GΩ, Accuracy = ±2.0%, Max Power = 7.5 W, Max V/Step = 5000, Temp. Coeff. = ±100 ppm/°C.

Decade 9: Value = 100 GΩ, Accuracy = ±5.0%, Max Power = 7.5 W, Max V/Step = 5000, Temp. Coeff. = ±2000 ppm/°C.

Decade 10: Value = 1 TΩ, Accuracy = ±5.0%, Max Power = 1 W, Max V/Step = 5000, Temp. Coeff. = ±2000 ppm/°C.
