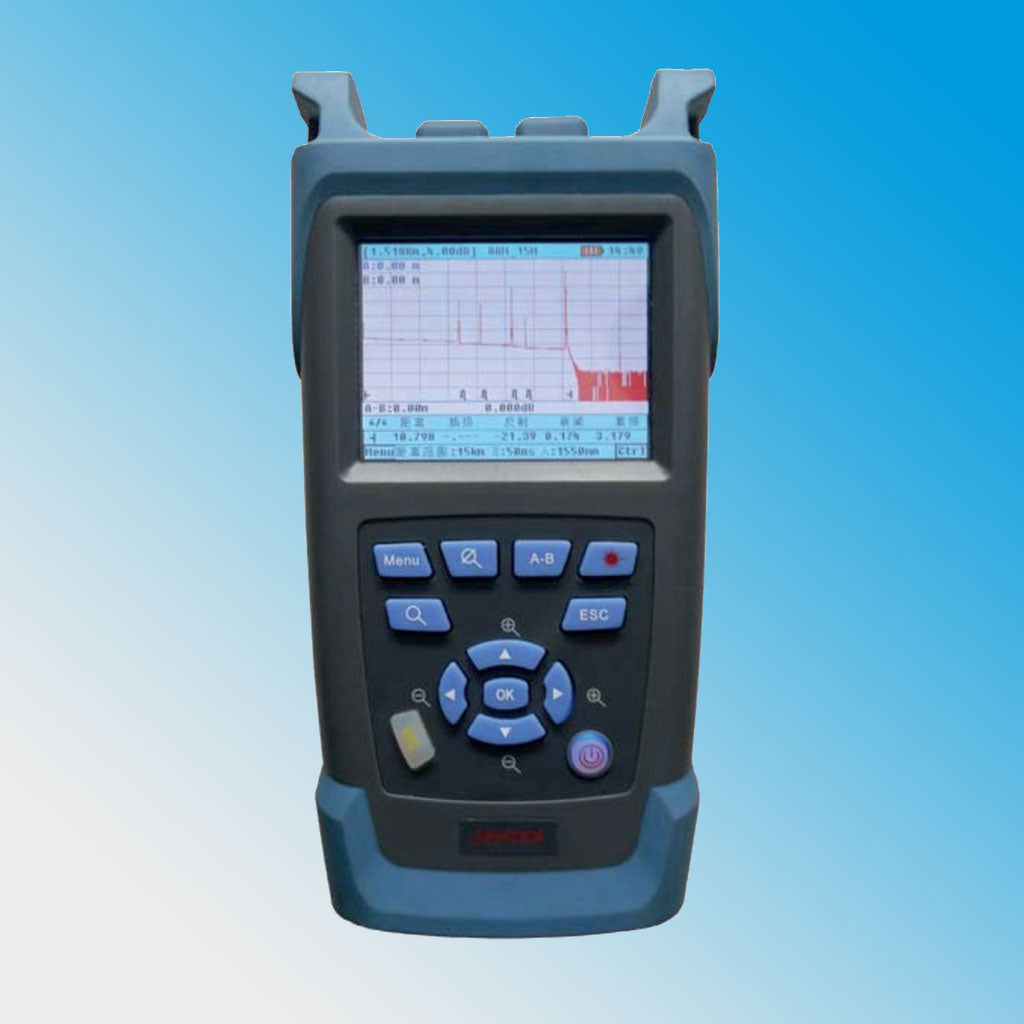

ST3200 OTDR Optical Time Domain Reflectometer

ST3200 OTDR (Optical Time Domain Reflectometer) is an intelligent optical fiber communication tester. This tester is easy to use and portable, which has a 3.5-inch color LCD touching screen. It also possesses events intelligent analysis and more user — friendly operation. It is an ideal test instrument for the fiber testing and troubleshooting. It can test the length of optical fiber and optical fiber cable attenuation coefficient. It can exactly display the loss distribution curve of the optical fiber and cable as well as the loss between two points and the joint loss. It also can test the distance between two points and the position of joint, fault point as well as breaking point. This tester has VFL (Vision Fault Locating) system. So it becomes convenient to test the fault location of jumper wire.

For more information about this product contact Tinsley.

*All information provided by Tinsley in this datasheet is believed to be accurate. Tinsley reserves the right to discontinue andchange specifications and prices at any time without prior notice. For further details, please refer to our website www.tinsley.co.uk contact Tinsley

Note: Because of the technical nature of Submarine Cable Testing Equipment and the use and support requirements across international boundaries, the equipment can only be purchased direct from the manufacturer: - Tinsley Precision Instruments in the UK or through certified international agents listed on our website.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  1. Test the distance between two points and dynamically display the distance between two cursors
  2. Test the loss between two points and the loss constant of the optical fiber and cable
  3. Test the joint loss
  4. Auto-optimization and quick response
  5. Search for the event points automatically
  6. The function of wave form storage: it can store the wave form data and test condition into the disk and the stored information also can display again.
  7. Support the function of copy: it can copy the data file which is built in the internal disk into the U-disk directly

Optical output connector: 800~170

Display screen: 320x240 3.5 inch colored LCD (touch screen)

Port: USB port

Environmental requirement: Working environment temperature 0~50°C, Storing environment temperature −20~60°C, Relative humidity 0%–95% (non-condensing)

Dimension: 220mm x 105mm x 60mm

Weight: About 1 kg

Duration of the battery: Standby >50h, Testing Time >20h

Key Tech Specifications:

Sub Models: ST3200-3528, ST3200-3532

Wavelengths: 1310nm/1550nm ±20nm

Dynamic Range: 28/26dB, 32/30dB

Range(km): 1, 2, 4, 8, 15, 30, 60, 90, 120; 1, 2, 4, 8, 15, 30, 60, 90, 160

Fiber Under Test: single mode

Pulse Width(ns): 10/20/50/100/200/500/1us/2us/5us/10us/20us/Auto

Working Current: 450-600mA

Power Consumption: About 4 W, <3 W

Event Dead Zone: ≤2m

Attenuation Dead Zone: ≤10m

The VFL output power: >2mW

The capacity of storing waveform: >10000

Degree of Linearity(dB): ±0.05

Loss Threshold(dB): 0.01

Loss Resolution(dB): 0.01

Sampling Resolution(m): 0.16~5

Averaging Time: 5s, 15s, 30s, 1min, 2min, 3min

Alarm with light: >1µW (−30dBm)

Distance Uncertainty: ±(1m + sampling interval + range × 0.005%)

Items

Name: Host – ST3200 OTDR

Quantity: 1

Name: Battery Charger

Quantity: 1

Standard Accessory: User Manual

Quantity: 1

Standard Accessory: CD (including ST3200 imitated analysis software)

Quantity: 1

Standard Accessory: USB Data Cable

Quantity: 1

Standard Accessory: Carrying Bag

Quantity: 1

Order numbers

ST3200-3528

Operating wavelength: 1310nm/1550nm ±20nm

Type of the testable optical fiber: SMF single mode

Dynamic range (SNR=1): 28/26 dB

ST3200-3532

Operating wavelength: 1310nm/1550nm ±20nm

Type of the testable optical fiber: SMF single mode

Dynamic range (SNR=1): 32/30 dB

Optional modules

No. 1

Name: SC

Type and specification: Adapter

Specification: Test

No. 2

Name: ST

Type and specification: Adapter

Specification: Test

DATASHEET ST3200 OTDR Optical Time Domain Reflectometer
