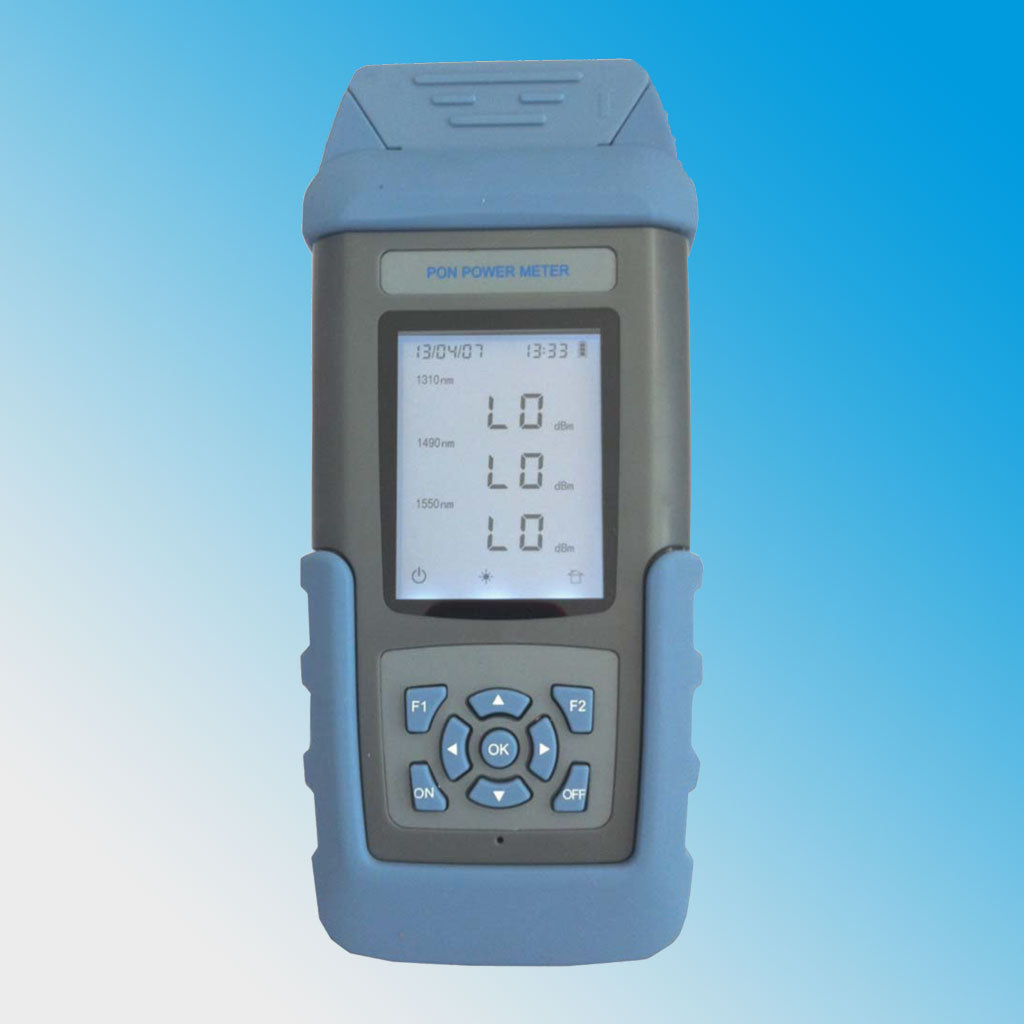

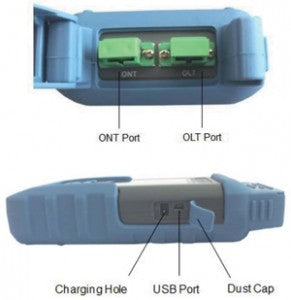

ST805C PON Power Meter

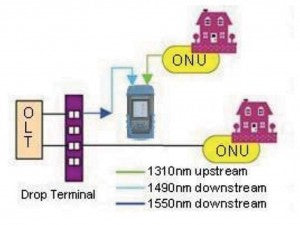

1. Test 3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm
2. Suitable for all PON network (APON, BPON, GPON, EPON)
3. User-defined Threshold Sets
4. Supply 3 groups of threshold values; analyze and display pass/fail status
5. Relative value (differential loss)
6. Save and upload the records to computer
7. Set threshold value, upload data, and calibrate wavelength through management software
8. 32 digits CPU, easy to operate, simple and convenient
9. Auto power off, auto backlight off, low voltage power off
10. Cost efficient palm size designed for field and lab testing
11. Easy-to-use interface with large display for easy visibility

1. 3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm
2. Test the burst mode signal of 1310nm
3. Threshold value setting function
4. Data storage function
5. Auto backlight off function
6. Display the voltage of battery
7. Power off automatically when it is in low voltage
8. Real-time clock display

Wavelengths

Standard Wavelengths:

•
  1310 nm (upstream)

•
  1490 nm (downstream)

•
  1550 nm (downstream)


ST800 Wavelength Ranges

•
  1260–1360 nm (1310)

•
  1470–1505 nm (1490)

•
  1535–1570 nm (1550)


Power Test Ranges

•
  1310 nm: -40 to +10 dBm

•
  1490 nm: -45 to +10 dBm

•
  1550 nm: -45 to +23 dBm


Isolation

•
  @1310 nm: >40 dB

•
  @1550 nm: >40 dB


Accuracy & Performance

•
  Uncertainty: ±0.5 dB

•
  Polarization Dependent Loss: < ±0.25 dB

•
  Linearity: ±0.1 dB

•
  Through Insertion Loss: <1.5 dB

•
  Resolution: 0.01 dB

•
  Units: dBm / xW


Memory & Display

•
  Storage: 99 items

•
  Auto backlight off: 30 seconds without operation

•
  Auto power off: 10 minutes without operation


Power & Battery

•
  Battery: 7.4 V 1000 mAh rechargeable Lithium battery or dry battery

•
  Continuous working: ~18 hours for Lithium or dry battery (varies by brand)


Environmental & Physical Specs

•
  Working temperature: -10°C to 60°C

•
  Storage temperature: -25°C to 70°C

•
  Dimensions: 200 × 90 × 43 mm

•
  Weight: ~330 g


Items Included

1.
   ST805C PON Power – Quantity: 1

2.
   SC/SC Jumper Wire – Quantity: 1

3.
   Charger (for rechargeable battery) – Quantity: 1

4.
   USB Line – Quantity: 1

5.
   Management Software CD – Quantity: 1

6.
   User Manual – Quantity: 1

7.
   BB-002 Clean Cotton Stick – Quantity: 1 Pack


Sub-Model Selection for ST805C

•
  ST805C-A: Connector = SC/APC, Battery = Dry AA battery

•
  ST805C-B: Connector = SC/APC, Battery = Li-ion rechargeable battery

•
  ST805C-C: Connector = SC/PC, Battery = Dry AA battery

•
  ST805C-D: Connector = SC/PC, Battery = Li-ion rechargeable battery
